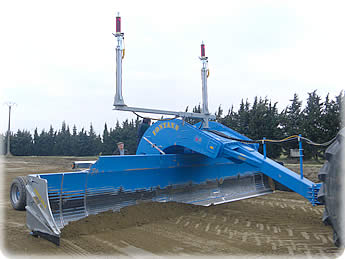

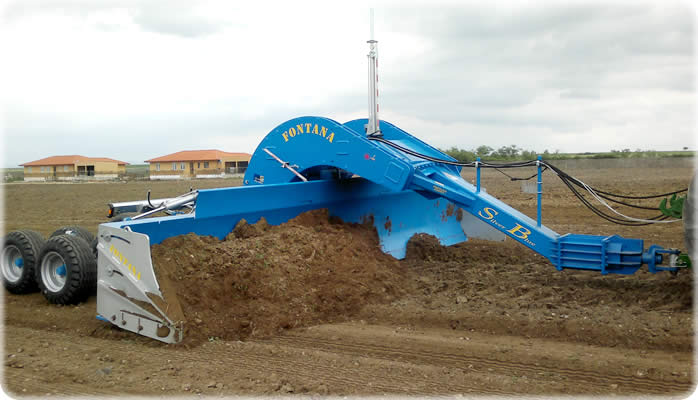

It is a levelling machine which can be used for agricultural levellings as well as in the building industry for works such as levelling of large squares, sheds, roads, sport grounds and airports. |
|
| |
|
|
| |
| General features |
| • |
|
Blade curvature for lower power absorption due to rolling of any type of land, therefore improved release also under difficult conditions. |
| • |
|
Frame designed and made with innovative systems and top qualtiy material, in order to warrant sturdiness and stability, avoiding torsion that would offset the level and damage the machine. |
| • |
|
Adjustment of the working angle of the blade by means of 2 cylinders set at the sides of the chassis
(whose width is m 1.60). |
| • |
|

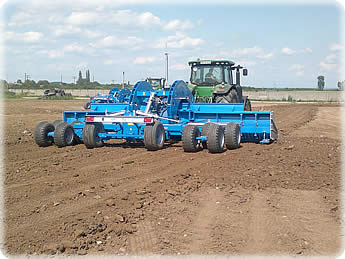

Trolley with 8 wheels assembled on 4 equalizers, for excellent stability also at high speed. |
| • |
|
New patented devices which optimize the levelling work in any situation. |
| • |
|
Fluid power system supplied by the tractor. |
| • |
|
Tow hook with 3 articulated joints and fork "Fontana" model. |
| • |
|
Possibility of adding extension modules on the sides of the blade on models SB 600 and 700. |
| • |
|
Automatic shifting from transport position (m 2.55) to work position and vice versa without having to put any safety/blocking tie-rod or pin. |
|
|
| |
|
|
| |
| MODEL |
SB 600 |
SB 700 |
SB 800 |
| Modular width |
cm |
600 |
700 |
800 |
| Blade height |
cm |
140 |
140 |
140 |
| Frame width |
cm |
160 |
160 |
160 |
| Horsepower required |
HP
min/max |
240 / 550 |
260 / 600 |
280 / 650 |
| Length |
m |
7.20 |
7.20 |
7.70 |
| Weight |
kg |
7,800 |
8,300 |
8,800 |
| Wheels number |
|
8 |
8 |
8 |
| Towed machine certification: mechanical/hydraulic brake – signalling and security devices – type-testing certificates |
|
optional |
optional |
optional |
| Hydraulic receiver holder mast |
|
standard |
standard |
standard |
| Hydraulic calibrator (tilter) |
|
standard |
standard |
standard |
| Regulation lighting system |
|
standard |
standard |
standard |
| Blade and trolley
hydraulic closing at mt. 2,5 for road circulation |
|
standard |
standard |
standard |
| Proportional electric valve |
|
optional |
optional |
optional |
| Hydraulic adjustment of the
working angle of the blade |
|
standard |
standard |
standard |
| Precision fluid power system with independent tank |
|
optional |
optional |
optional |
| Adjustable lateral
stabilizing skids (each couple) - recommended on levellers with 6 mt. width and more |
|
optional |
optional |
optional |
| Tow hook spare part (mast + fork + ring) |
|
optional |
optional |
optional |
|
|
|
|
