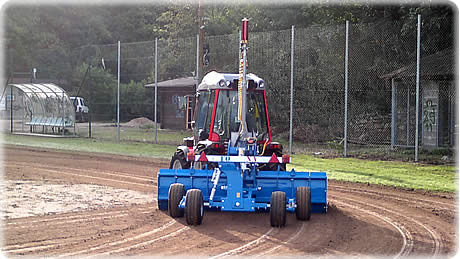

It is a levelling machine which can be used also in the building industry, for works such as levelling of large squares, sheds, roads, sport grounds and airports. |
|
| |
|
|
| |
| General features |
| • |
|
Small levellers suitable for sport grounds, gardens, greenhouses and narrow spaces. |
| • |
|
Fluid power system supplied by the tractor. |
| • |
|
Tow hook with 3 articulated joints. |
| • |
|
Possibility of adding extension modules on the sides of the blade on models MIG-PRO 150 and 200. |
|
|
| |
|
|
| |
| MODEL |
MIG-PRO 150 |
MIG-PRO 200 |
MIG-PRO 250 |
| Modular width |
cm/ft |
150/5 |
200/7 |
250/9 |
| Blade height |
cm/ft |
62/2 |
62/2 |
62/2 |
| Blade closing |
|
- |
mechanical |
mechanical |
| Chassis width |
cm |
40 |
40 |
40 |
| Power rating |
HP
min/max
KW min/max |
15/80
11/58 |
15/80
11/58 |
15/80
11/58 |
| Length |
m |
2.72 |
2.72 |
2.72 |
| Max width of adjustable trolley |
m |
2.40 |
2.40 |
2.40 |
| Weight |
kg/Lb |
530/1,162 |
570/1,257 |
610/1,345 |
| Trolley with 4 wheels assembled on equalizers |
|
standard |
standard |
standard |
| Max width for road circulation |
m |
1.50 |
2.00 |
2.50 |
| Hidraulic receiver holder mast |
|
standard |
standard |
standard |
| Hydraulic calibrator (tilter) + trolley with central fulcrum |
|
standard |
standard |
standard |
| Regulation lighting system |
|
standard |
standard |
standard |
| Self-contained precision
fluid power system |
|
optional |
optional |
optional |
| Proportional electric valve |
|
optional |
optional |
optional |
|
|
|
|
