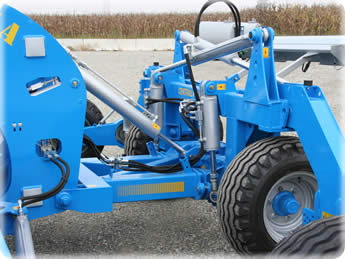

It is a levelling machine which can be used for agricultural levellings as well as in the building industry for works such as levelling of large squares, sheds, roads, sport grounds and airports. |
|
| |
|
|
| |
| General features |
| • |
|
Blade curvature for lower power absorption due to rolling of any type of land, therefore improved release also under difficult conditions. |
| • |
|
Frame designed and made with innovative systems and top qualtiy material, in order to warrant sturdiness and stability, avoiding torsion that would offset the level and damage the machine. |
| • |
|
Ploughshare made of wear-and-tear milled steel for deeper penetration. |
| • |
|
Trolley with 4, 6 or even 8 wheels assembled on equalizers, in order to achieve excellent stability also at high speed. |
| • |
|
New patented devices which optimize the levelling work in any situation. |
| • |
|
Precision fluid power system with independent tank. Possibility of exploiting the tractor fluid power system. |
| • |
|
Tow hook with 3 articulated joints and fork “Fontana” model. |
| • |
|
Possibility of adding extension modules on the sides of the blade on models LSR 400, 450 and 500. |
| • |
|
Automatic shifting from transport position (m. 2,55) to work position and vice versa without having to put any safety/blocking tie-rod or pin. |
|
|
| |
|
|
| |
| MODEL |
LSR 400 |
LSR 450 |
LSR 500 |
LSR 600 |
| Modular width |
cm/ft |
400/13 |
450/15 |
500/17 |
600/19 |
| Blade height |
cm/ft |
110/3.60 |
110/3.60 |
110/3.60 |
110/3.60 |
| Frame width |
cm |
124 |
124 |
124 |
124 |
| Power rating |
HP
min/max
KW min/max |
150/350
110/258 |
150/350
110/258 |
150/350
110/258 |
150/350
110/258 |
| Length |
m |
6.30 |
6.30 |
6.30 |
6.30 |
| Proportional electric valve |
|
optional |
optional |
optional |
optional |

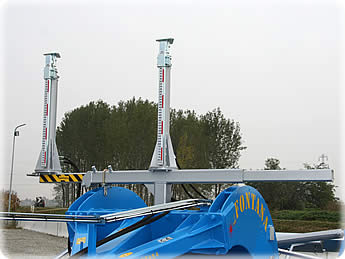

| Hydraulic receiver holder mast |
|
standard |
standard |
standard |
standard |
| Hydraulic calibrator (tilter) |
|
standard |
standard |
standard |
standard |
| Hydraulic closing of blade and trolley at mt. 2,5 for road circulation |
|
standard |
standard |
standard |
standard |
| Hydraulic adjustment of the working angle of the blade |
|
standard |
standard |
standard |
/ |
| Towed machine certification:wedges – signalling and security devices – type-testing certificates |
|
optional |
optional |
optional |
optional |
| Hydraulic side off-set (grader) |
|
optional |
optional |
optional |
optional |
| Regulation lighting system |
|
standard |
standard |
standard |
standard |
| Ripper with vertical hydraulic adjustment (kg 225) |
|
optional |
optional |
optional |
optional |
| Supplementary hydraulic
receiver mast with electric valve (kg 30) |
|
optional |
optional |
optional |
optional |
| Wide wheels |
|
optional |
optional |
optional |
optional |
| Push-button panel for electric valve (without laser system) |
|
optional |
optional |
optional |
optional |
| Surcharge for brake (instead of regular axle shaft) |
|
optional |
optional |
optional |
optional |
| Adjustable lateral stabilizing skids (each couple) - recommended on levellers with 6 mt. width and more |
|
optional |
optional |
optional |
optional |
| Double swinging equalizer |
|
optional |
optional |
optional |
optional |
| Hydraulic furrow opener |
|
optional |
optional |
optional |
optional |
| Hydraulic earthbuffers (each couple) |
|
optional |
optional |
optional |
optional |
| Extension module for trolley with arms |
|
/ |
/ |
/ |
optional |
| Cylinder complete with grader for cm. 100 extension module for the closing parts of the blade |
|
/ |
/ |
/ |
optional |
|
|
| |
|
|
| |
|
Equalizers |
Type of trolley |
Weight kg/Lb |
| LSR 400 |
no. 2 with 2 wheels |
4 wheels telescopic |
3,676/8,104 |
| no. 2 with 3 wheels |
6 wheels telescopic |
3,780/8,333 |
| LSR 450 |
no. 2 with 2 wheels |
4 wheels telescopic |
3,766/8,302 |
| no. 2 with 3 wheels |
6 wheels telescopic |
3,870/8,532 |
| LSR 500 |
no. 2 with 2 wheels |
4 wheels telescopic |
3,816/8,413 |
| no. 2 with 3 wheels |
6 wheels telescopic |
3,920/8,642 |
| no. 2 with 2 wheels |
6 wheels with arms |
4,210/9,281 |
| no. 2 with 2 wheels |
6 wheels central fulcrum |
4,420/9,744 |
| LSR 600 |
no. 2 with 3 wheels |
6 wheels telescopic |
4,060/8,950 |
| no. 2 with 2 wheels |
6 wheels with arms |
4,350/9,590 |
| no. 2 with 2 wheels |
6 wheels central fulcrum |
4,570/10,075 |
| no. 2 with 3 wheels |
8 wheels central fulcrum |
4,670/10,296 |
|
|
| |
|
|
| |
