| General features |
| • |
|

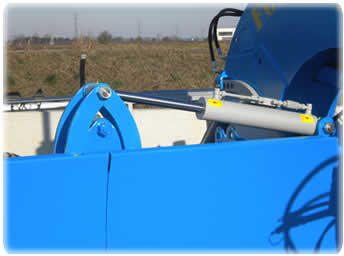

Hydraulic calibrator (tilter) |
| • |
|

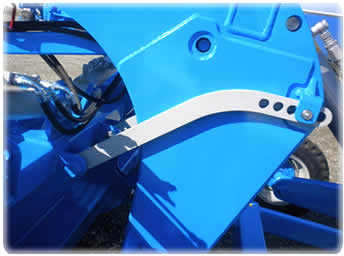

Mechanical adjustment of the working angle of
the blade |
| • |
|
Self-contained precision fluid power system
with 1 dampened on-off electric valve |
| • |
|
Graduated hydraulic receiver holder mast |
| • |
|
Regulation lighting system |
| • |
|
Blade and trolley hydraulic closing to mt. 2.36
for road circulation |
| • |
|
Blade height cm. 95 / ft 3.15 |
| • |
|
Tow hook with joints |
| • |
|
Fixed trolley with 4 wheels on equalizers |
| • |
|
Hydraulic folding of the extension modules of the
blade |
|
|
|
| |
|
|
| |
|
Blade width
m/ft |
Power rating
HP (KW) |
Type of trolley |
Weight
kg/Lb |
| LSE 236 |
2.36/8 |
100/200 (74/133) |
Fixed with 4 wheels |
2,000/4,410 |
| LSE 336 |
3.36/11 |
100/200 (74/133) |
Fixed with 4 wheels |
2,170/4,785 |
| LSE 386 |
3.86/13 |
100/200 (74/133) |
Fixed with 4 wheels |
2,240/4,950 |
| LSE 436 |
4.36/15 |
100/200 (74/133) |
Fixed with 4 wheels |
2,310/5,100 |
|
|
| |
|
|
| |
| Accessories |
| • |
|
Push-button panel for electric valve (to work without laser system) |
| • |
|
Surcharge for proportional electric valve |
| • |
|
Hydraulic adjustment of the working angle of the blade |
| • |
|
Surcharge for telescopic trolley with 4 wheels on equalizers |
| • |
|
Difference from n° 4 to n° 6 wheels (telescopic trolley) |
| • |
|
Surcharge for tow hook with 3 joints with fork “Fontana” model |
| • |
|
Blade extension module 25 cm - Weight 85 kg |
| • |
|
Blade extension module 50 cm - Weight 120 kg |
| • |
|
Blade extension module 100 cm - Weight 155 kg |
|
|
| |
