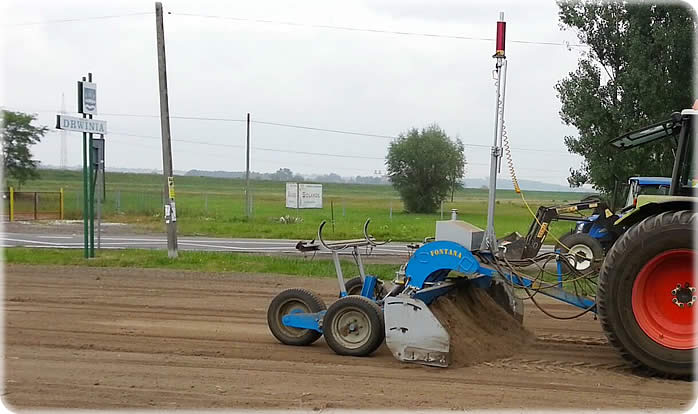

It is a levelling machine which can be used also in the building industry, for works such as levelling of large squares, sheds, roads, sport grounds and airports. |
|
| |
|
|
| |
| General features |
| • |
|
Blade curvature for lower power absorption due to rolling of any type of land, therefore improved release also under difficult conditions. |
| • |
|
Frame designed and made with innovative systems and top qualtiy material, in order to warrant sturdiness and stability, avoiding torsion that would offset the level and damage the machine. |
| • |
|
Excellent stability also at high speed. |
| • |
|
Precision fluid power system with independent tank. Possibility of exploiting the tractor circuit. |
| • |
|
Trolleys on equalizers. |
| • |
|
Tow hook with 3 articulated joints. |
| • |
|
Possibility of adding extension modules on the sides of the blade on models LSB-PRO 236 and 286. |
|
|
| |
|
|
| |
| MODEL |
LSB-PRO
236 |
LSB-PRO
286 |
LSB-PRO
336 |
| Modular width |
cm/ft |
236/8 |
286/9 |
336/11 |
| Blade height |
cm/ft |
70/2.3 |
70/2.3 |
70/2.3 |
| Blade closing |
|
- |
mechanical |
mechanical |
| Chassis width |
cm |
80 |
80 |
80 |
| Power rating |
HP
min/max
KW min/max |
70/120
52/88 |
70/120
52/88 |
70/120
52/88 |
| Length |
m |
3,85 |
3,85 |
3,85 |
| Weight |
kg/Lb |
1.020/2,250 |
1.080/2,380 |
1.140/2,515 |
| Trolley on equalizers with 4 wheels |
|
standard |
standard |
standard |
| Blade and truck closing at mt. 2,50 for road circulation |
|
standard |
standard |
standard |
| Hydraulic receiver holder mast |
|
standard |
standard |
standard |
| Supplementary graduated hydraulic receiver holder mast + electric valve (series BI-LSB): system suitable for levelling works with transversal slopes |
|
optional |
optional |
optional |
| Hydraulic calibrator (tilter) + trolley with central fulcrum |
|
standard |
standard |
standard |
| Regulation lighting system |
|
optional |
optional |
optional |
| Proportional electric valve |
|
optional |
optional |
optional |
| Hydraulic adjustment of the working angle of the blade into the ground (30 kg) |
|
optional |
optional |
optional |
Towed machine certification:
wedges – signalling and security devices – type-testing certificates |
|
optional |
optional |
optional |
| Hydraulic side offset (grader) |
|
optional |
optional |
optional |
| Ripper with vertical hydraulic adjustment |
|
optional |
optional |
optional |
Earthbuffers with hydraulic adjustment
(kgs. 900 for each couple) |
|
optional |
optional |
optional |
| Lateral extension modules with hydraulic folding |
|
optional |
optional |
optional |
| Auxiliary electrical controls |
|
optional |
optional |
optional |
|
|
|
|
