Levelling machine specific for works in the building industry |
|
| |
|
|
| |
| General features |
| • |
|
It cuts work time down of about 50% while it maintains the greatest precision in any situation. |
| • |
|

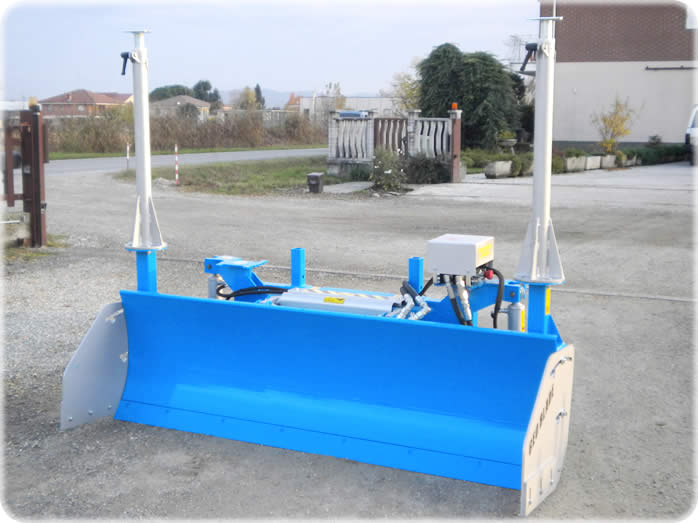

The hydraulic levelling "GEOBLADE" is a powerful and totally automatic blade. |
| • |
|
2 laser receivers control the up-and-down and transversal movements, allowing to achieve great results in terms of precision of the finishing touch. |
| • |
|
The blade is assembled according to your needs in order for it to be stable, but also precise and quick during the work. |
| • |
|
This machine can perform any levelling work, especially some little road works or for yards, sheds, sport facilities, etc. |
| • |
|
The connection to the hydraulic system of the operating machine is obtained by means of a swift connection, without any effort from the operator. Precision is guaranteed by the proportional valves. |
| • |
|
The "GEOBLADE" makes it possible to excavate and finish with the same machine without having to use firstly the blade and secondly the grader. |
|
|
| |
|
|
| |
| MODEL |
GEOBLADE 200 |
GEOBLADE 250 |
| Modular width |
cm |
200 |
250 |
| Blade height |
cm |
75 |
75 |
| Chassis width |
cm |
131 |
131 |
| Horsepower required |
HP
min/max |
30 / 70 |
50 / 100 |
| Total weight |
kg |
620 |
675 |
| Length |
m |
1,44 |
1,44 |
| Optional wheeled trolley |
No. |
2 |
2 |
| Max width for road circulation |
m |
2,00 |
2,55 |
| Hydraulic telescopic holder mast |
|
optional |
optional |
|
|
|
|
